You walk out to your equipment pad and hear it: a loud, angry electrical humming noise, but no water is moving through the pump basket. Turn the power off at the breaker immediately. Leaving a humming pump running will quickly generate enough heat to melt the internal components.
TL;DR: Quick Diagnostic
Motor is HOT
Bad capacitor or seized bearings (electrical).
Motor is COOL
Jammed impeller — check for pebbles or debris.
The Physics of the "Hum" (Locked Rotor Amps)
When your pool pump sends electricity to the motor, magnetic fields are created to spin the central shaft. If something prevents that shaft from spinning, the motor enters a state called LRA (Locked Rotor Amps).
Because the motor is desperately trying to overcome the resistance, it begins pulling massive amounts of electricity — often up to five times its normal operating current. This surge of trapped electrical energy vibrates the metal components (creating the loud hum) and converts directly into intense heat.
Critical Safety Warning
Pool pumps deal with 230 volts of electricity and pressurized water. Always turn off the main breaker before touching any electrical components. If you are not comfortable working with high-voltage equipment, use our Equipment Troubleshooter to get connected with a local pro.
The 4 Causes of a Humming Pool Pump
There are four distinct reasons a pump shaft will lock up. You can usually narrow it down by touching the back of the motor (is it burning hot or cool?) and performing the Screwdriver Spin Test.
Cause 1: A Jammed Impeller
Diagnosis: The motor is relatively cool to the touch.
If the motor hasn't overheated, you likely have a physical blockage in the "wet end" of the pump. The impeller is a plastic wheel that throws the water. Often, a small pebble, a clump of pine needles, or a pool toy gets sucked past the basket and wedges the impeller tight.

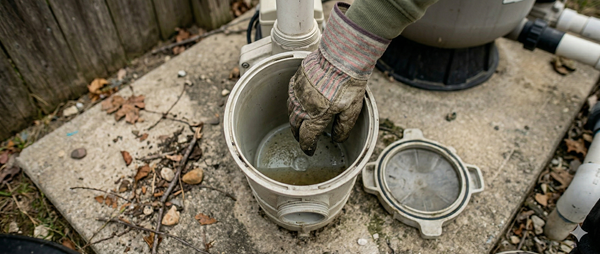

The Fix: Turn off the breaker. Open the pump lid and remove the basket. Reach your fingers into the hole at the back of the housing to feel the impeller. Clear out the debris so the wheel can spin freely.
Cause 2: A Bad Start Capacitor
Diagnosis: The motor is burning hot, but the shaft spins freely.
The start capacitor is a small black cylinder usually housed under a hump on top of the motor. It acts like a battery to give the pump the massive initial "jolt" of electricity it needs to start spinning from a dead stop. If it dies, the motor doesn't have the strength to start turning, so it just hums and overheats.
The Fix: This is a highly common failure point. If your capacitor has failed (often indicated by a bulging or leaking top), replace it with a universal pool pump start capacitor that matches your MFD rating.
Warning
Start capacitors hold a lethal electrical charge even when the main breaker is off. Never touch the terminals without properly discharging it with an insulated tool first.
Cause 3: Seized Motor Bearings
Diagnosis: The motor is burning hot, and the shaft is physically locked.
Inside the motor are steel ball bearings that allow the shaft to spin smoothly at 3,450 RPMs. If the mechanical shaft seal fails, chlorinated water leaks into the motor. The water instantly rusts the bearings, seizing them into a solid block of metal. When you turn it on, the motor hums against the rusted bearings until it trips the overload switch.
Cause 4: Voltage Drop / Bad Timer Relay
Diagnosis: The motor hums quietly and never gets dangerously hot.
Most full-sized pool pumps require 230 volts of electricity (supplied by two 115V wires). If your mechanical timer (like an Intermatic) gets ants in it, or a relay burns out, only one 115V wire might be sending power to the pump. 115 Volts is enough to make the magnetic coils hum, but not enough to spin the heavy impeller.
The Pro Diagnostic: The Screwdriver Spin Test
If you aren't sure if you have a bad capacitor (Cause 2) or seized bearings (Cause 3), you can perform the definitive test that pool mechanics use.
- Shut off the main breaker to the pump.
- Go to the very back of the motor (the opposite end of the wet plumbing).
- Depending on your pump model, either remove the back cover plate or look for a small hole in the center of the casing.
- You will see the back of the motor shaft. It is slotted for a flathead screwdriver or shaped for a 1/2" wrench.
- Insert your tool and try to manually turn the shaft.
The Results: If you can turn the shaft relatively easily, your bearings are fine, and you likely just need a new Start Capacitor. If the shaft will not budge, or grinds heavily, your bearings are rusted and seized.
Repair vs. Replace: What Should It Cost?
If your pump is humming, here is a general breakdown of what you can expect to pay if you call a local pool professional to fix it.
| Failure Point | Estimated Cost | Recommendation |
|---|---|---|
| Jammed Impeller | $0 - $125 | Try to clear it yourself first. |
| Bad Start Capacitor | $125 - $175 | Easy, cheap repair. Worth fixing immediately. |
| Seized Bearings | $400 - $600 | Only replace the motor if pump is < 5 years old. |
| Upgrade to VSP | $1,200 - $2,200+ | Saves up to 80% on energy. See VSP options. |
Equipment Troubleshooter
Answer diagnostic questions to pinpoint your exact failure point.
Diagnose NowVSP Savings Calculator
See how much you'd save upgrading to a variable speed pump.
Calculate SavingsFrequently Asked Questions
Will a humming pool pump start a fire?
Modern pool pumps have a built-in thermal overload switch. If the motor gets too hot from humming, this switch will automatically shut off the power. However, you should never rely on this safety feature. If you hear humming, turn off the breaker immediately to prevent melting the plastic plumbing fittings.
Can a bad pool timer cause the pump to hum?
Yes. If you have a 230V pump and one of the electrical legs on your mechanical timer or automated relay is burnt out, the pump will only receive 115V. This is enough voltage to make the motor hum, but not enough to spin the impeller.
Should I replace the motor or buy a whole new pump?
If your pump is a standard single-speed model and the motor dies, it is often much smarter to replace the entire unit with a modern Variable Speed Pump (VSP). Some states even legally require you to upgrade to a VSP if your old motor dies.
