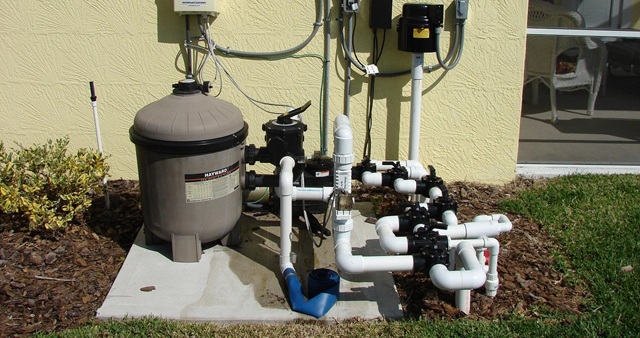

Congratulations, you're a pool owner! But if you are like most new owners, walking up to your pool equipment pad for the first time feels like staring at the control panel of a submarine. There is a maze of PVC pipes, massive tanks, and a confusing array of handles.
Turning the wrong handle can cause serious, expensive damage — like starving your pump of water or accidentally draining your spa into your backyard. In this guide, we are going to demystify your pool plumbing and give you an interactive Valve Simulator so you can practice turning the handles safely.
TL;DR: The Golden Rules
- Water flows in a specific order: Pool ➔ Pump ➔ Filter ➔ Heater ➔ Pool.
- On a 3-way valve, the wide "OFF" tab completely blocks water. Whichever pipe it points to is shut down.
- Never turn a valve in a way that blocks all water flowing into your pump.
- Practice adjusting flow safely using our Interactive Simulator below.
The Core Components of Your Pool Pad
Before we start turning valves, let's identify the heavy lifters on your equipment pad. Water always flows in a specific, unbroken order through these four components:
- The Pump: The heart of the system. It creates the suction that pulls water from the pool and the pressure that pushes it through the rest of the pad.
- The Filter: Located immediately after the pump. It pushes water through sand, D.E. grids, or paper cartridges to remove dirt and microscopic debris.
- The Heater: If you have one, it sits after the filter. It warms the clean water before it heads back to the pool.
- The PVC Pipes & Valves: The veins and arteries of the system, directing exactly where the water comes from and where it needs to go.
Understanding 3-Way Pool Valves (Jandy Valves)
Most modern pools use 3-way diverter valves (often called "Jandy valves" after a popular manufacturer). These are the black handles you see mounted directly onto your pipes.
The Golden Rule of Pool Valves
The wide "OFF" tab on the handle blocks water. Whichever pipe the "OFF" tab is pointing to is completely shut off from the flow of water.
Depending on how your builder plumbed your pad, you will likely have three main valves to control:
- The Suction Valve: Located before the pump. This decides if the pump is pulling water from the pool skimmers, the spa drain, or a mix of both.
- The Return Valve: Located after the heater. This decides if the clean, heated water is pushed back into the pool jets, the spa jets, or both.
- The Heater Bypass: A valve located right before the heater. It allows you to send water around the heater when you don't need it, protecting the internal copper heat exchanger from erosion.
The Interactive Valve Simulator
Ready to test your skills? We built this interactive simulator so you can learn how water flows through a standard Pool/Spa combo system.
How to use it: Click the red "OFF" tabs on the valves to rotate them. Adjust the pump speed. Try to put the system in "Spa Mode" — or see what happens if you accidentally trigger a plumbing disaster!
PoolChecker.com Valve Simulator
5 Valve Disasters Every Pool Owner Should Avoid
Turning the wrong valve at the wrong time can cost you hundreds in repairs — or worse, burn out your pump motor. Here are the most common mistakes and how to prevent them.
1. Running the Pump With All Suction Valves Closed
What happens: The pump starves for water, overheats, and can melt the pump housing or burn the motor seal in under 60 seconds.
How to avoid it: Before turning on the pump, always confirm at least one suction valve (skimmer or main drain) is open. Never close all suction sources while the pump is running.
2. Turning a Valve Too Fast While the Pump Is Running
What happens: A sudden valve turn creates a water hammer — a pressure spike that can crack PVC fittings, blow unions apart, or damage the impeller.
How to avoid it: Turn valves slowly and smoothly (take 5–10 seconds for a full rotation). If you need to make a major change, turn the pump off first, reposition valves, then restart.
3. Deadheading the Return Side
What happens: If both the pool return and spa return valves are closed, water has nowhere to go. Pressure builds until something pops — usually a filter clamp, a union, or the pump's mechanical seal.
How to avoid it: Always have at least one return path open. When switching from pool mode to spa mode, open the spa return before closing the pool return.
4. Leaving the Spa in Heating Mode Overnight
What happens: The spa heats up, but water only circulates through the small spa body. The pool gets no filtration and can turn green overnight in summer. Meanwhile, the spa can overheat past safe levels if there is no high-limit switch.
How to avoid it: Always return valves to pool mode (or a combination mode) after spa sessions. Set a phone reminder if needed.
5. Ignoring a Stiff or Leaking Valve
What happens: Over time, valve o-rings dry out and crack, and the internal diverter can seize. Forcing a stuck valve can break the handle or crack the valve body — turning a $15 o-ring fix into a $200+ valve replacement.
How to avoid it: Lubricate valve o-rings with silicone-based lube once a year. If a valve is stiff, don't force it. Remove the handle, pull the diverter, clean the housing, and replace the o-rings.
Use the simulator above to safely practice these scenarios. Try closing all suction valves or blocking all returns — you will see the warning indicators light up without any real-world damage.
Frequently Asked Questions
How do I know if a 3-way pool valve is open or closed?
Look for the word "OFF" stamped on one of the handle tabs. Whichever pipe the wide "OFF" tab points to is completely closed. The other two pipes are open. In the simulator above, click any valve to see this in action — the red tab rotates to block different ports.
Can I turn a pool valve while the pump is running?
Yes, but do it slowly — take at least 5 to 10 seconds for a full turn. Turning a valve too fast while the pump is running creates a water hammer effect that can crack PVC fittings or damage your pump impeller. The one exception: never turn a valve to a position that blocks all water flow to the pump while it is running, as this causes the pump to run dry.
Why is my pool pump running dry when I switch to spa mode?
This usually means the suction valve was turned to pull water only from the spa, but the spa does not have enough water volume to sustain the pump flow rate. Check that the spa drains are clear and not blocked by debris. Also verify the spa water level is high enough. On pool/spa combos, it helps to leave the suction valve in a split position (pulling from both pool and spa) rather than 100% spa suction.
How often should I lubricate my pool valves?
At least once a year — ideally during your spring opening or fall closing routine. Use a silicone-based lubricant (never petroleum-based) on the diverter o-rings and the handle mechanism. This prevents the valve from seizing and extends the life of the o-rings by several years.
What is the difference between a 2-way and a 3-way pool valve?
A 2-way valve has two ports and simply opens or closes a single pipe — it is either on or off. A 3-way valve has three ports and can direct water between two paths. Most pool/spa combos use 3-way valves because they need to switch water flow between the pool and spa. The simulator above models 3-way diverter valves, which are the most common type on residential pool equipment pads.
